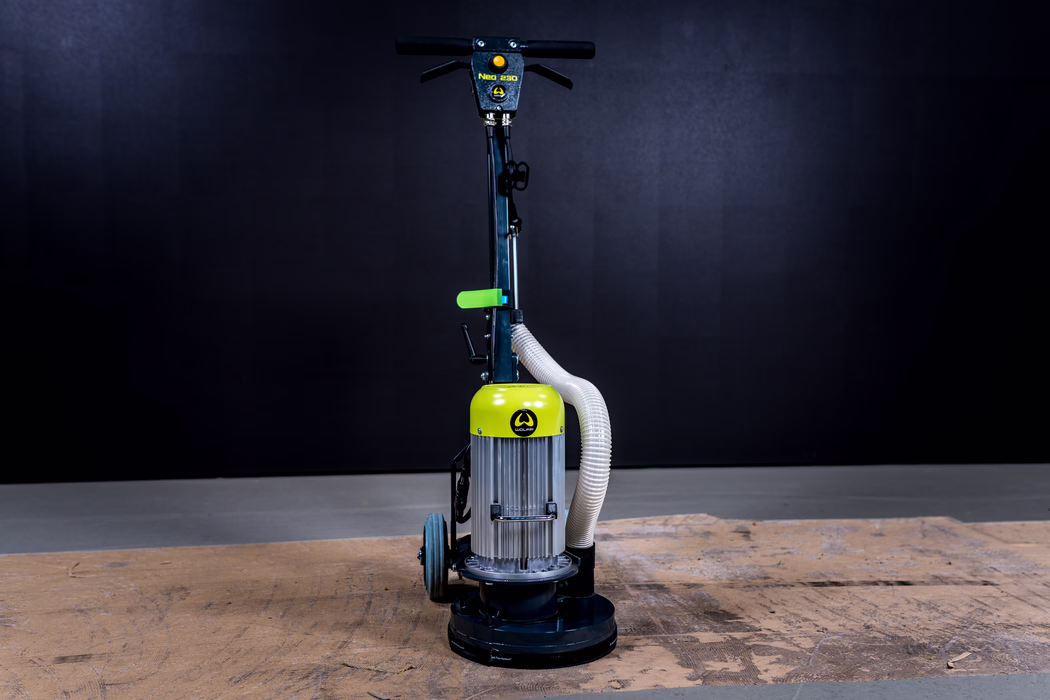

A floor polishing machine stands upright on a wooden surface, showcased against a dark backdrop. The machine features a glossy black body with a yellow motor casing and a flexible hose extending from it. The handlebar at the top is equipped with controls, including a prominent yellow button and additional grips that enhance usability. This machine appears robust and designed for professional use in flooring maintenance.

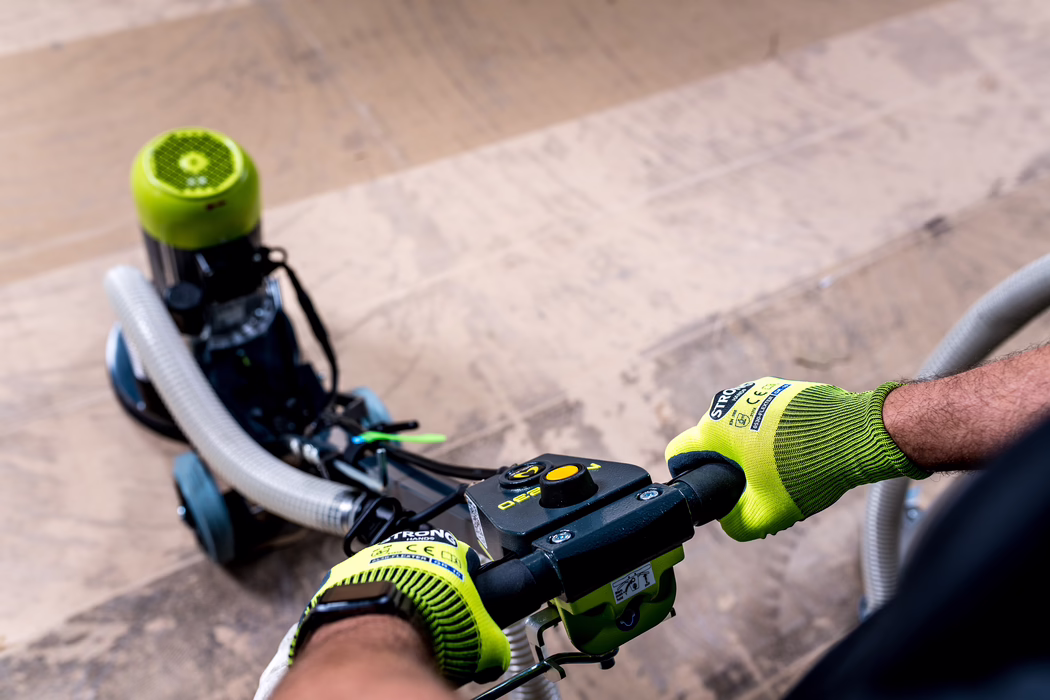

A close-up view of a person operating a floor grinding machine. The operator's hands, wearing bright green gloves, are holding the handle of the machine. The machine features a round green component at the top, likely a dust collection or suction feature. A flexible hose is attached to the machine, suggesting it is being used to grind or polish a surface, possibly wooden flooring. The background shows a light wooden floor, indicating that the work area is a construction or renovation site. The gloves are designed for safety and grip, emphasizing the importance of protection while working with machinery.

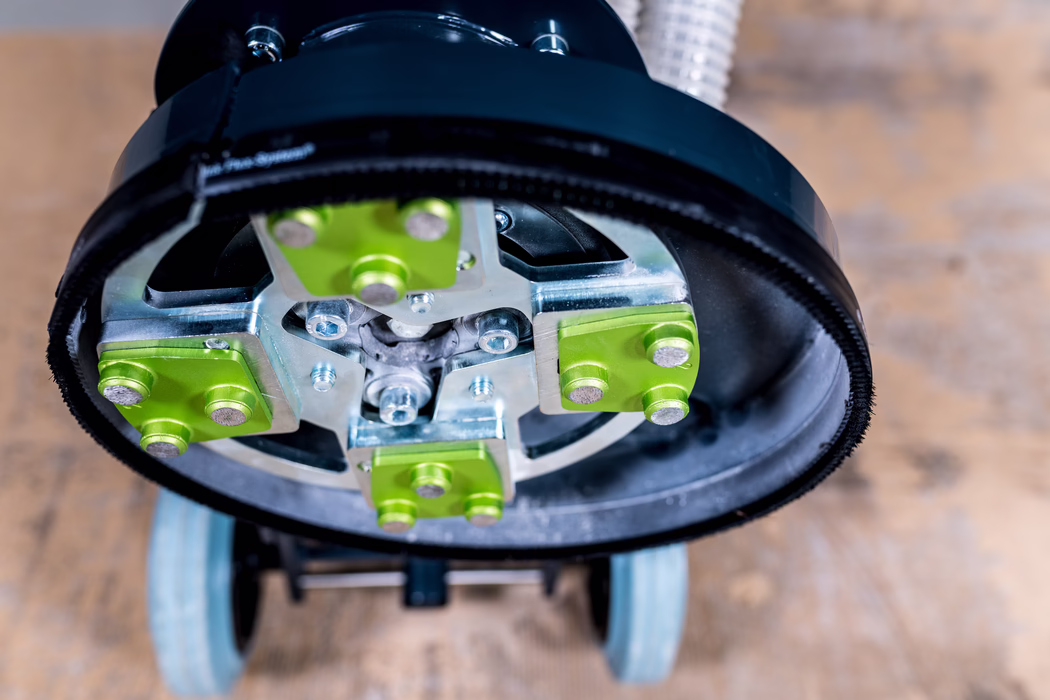

An image showing the underside of a mechanical device featuring a circular base with several protruding green components. The base consists of a sturdy black outer ring and a silver central disc equipped with four green rectangular pieces and multiple screws. A section of a flexible hose can be seen, indicating possible functionality, while the surface below appears to be wooden or a similar material.

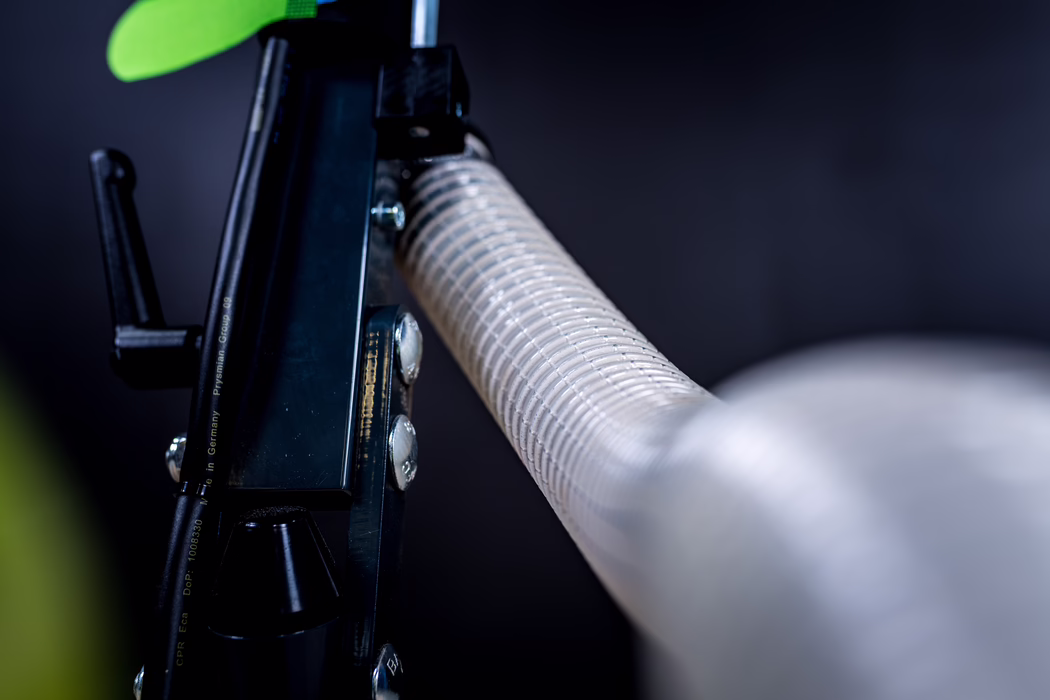

A close-up view of a device featuring a black handle and a transparent hose. The handle has a trigger mechanism, and there are metal screws visible on the side, along with a fine detail of the hose texture. The background is blurred out, focusing on the equipment.

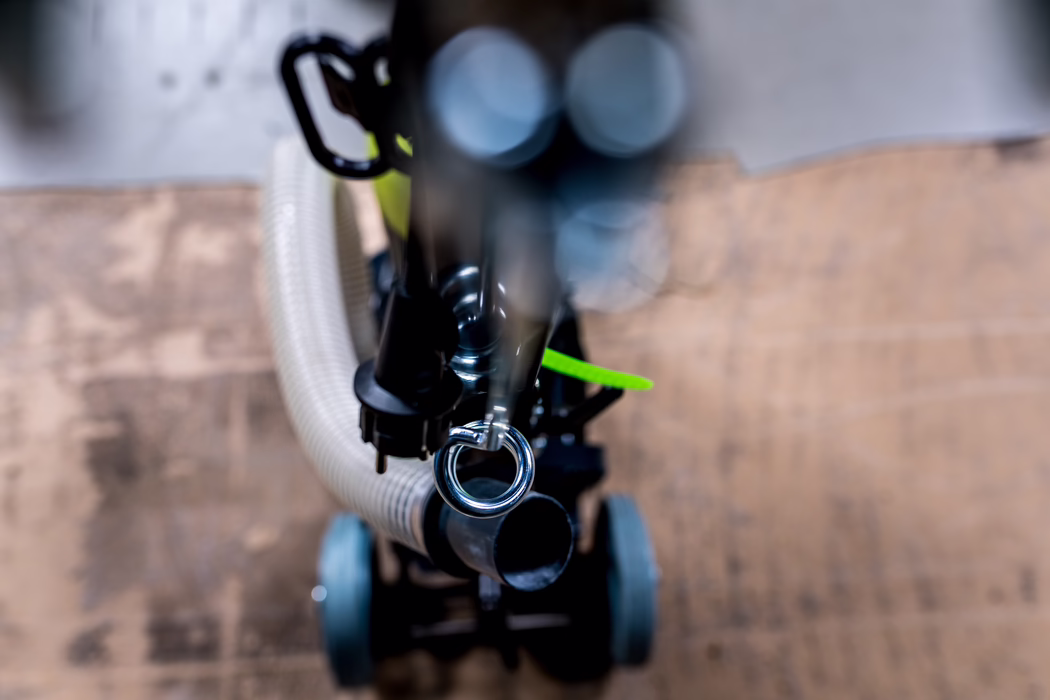

A close-up view of a vacuum cleaner, focusing on the front nozzle and hose attachment. The nozzle is metallic and cylindrical, with a circular opening at the end. A shiny metal ring is visible next to the nozzle, possibly for securing the attachment. The hose is flexible and made of a light-colored material, coiling around the vacuum. The background features a blurred wooden surface, suggesting the vacuum is resting on it.

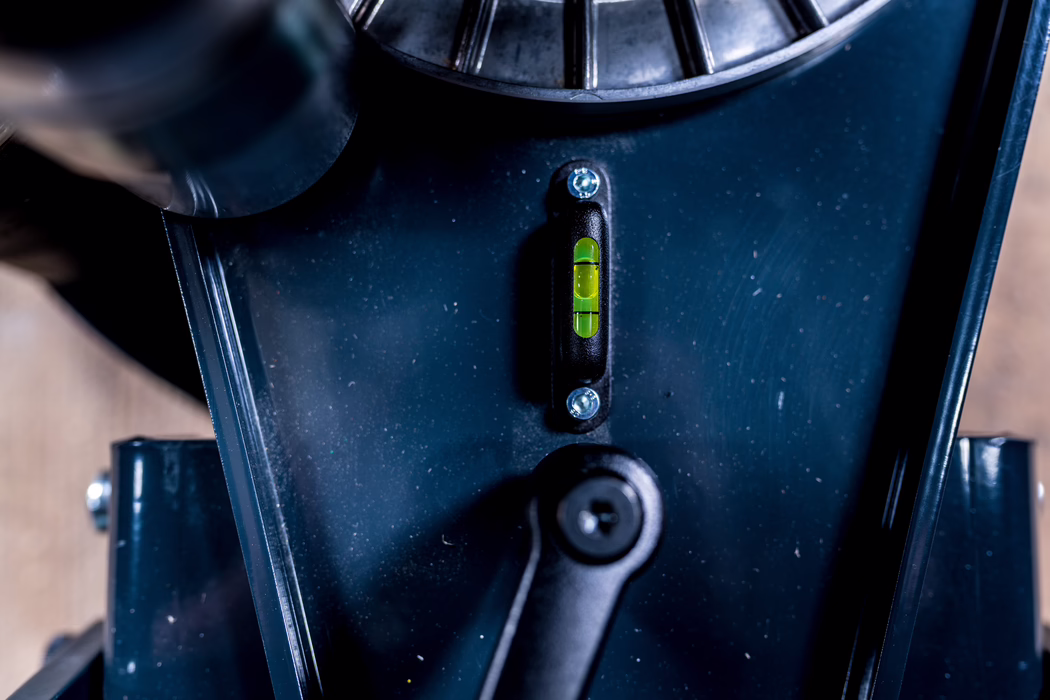

A close-up image of a spirit level attached to a machine. The spirit level is mounted in a black casing and features a bright green liquid bubble indicating the levelness. The machine has a dark blue exterior, with visible screws and a lever mechanism beside the level. The background is out of focus, displaying a wooden surface.

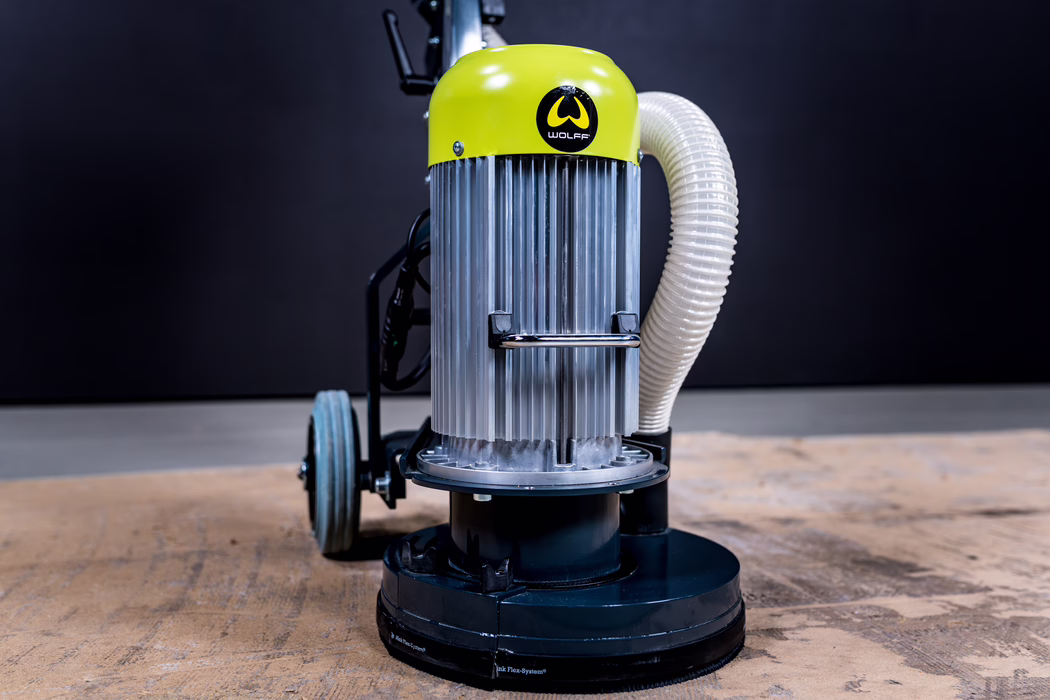

An industrial floor sanding machine with a bright yellow top and a silver, ribbed motor casing. The device is mounted on a sturdy base with wheels for mobility. A clear flexible hose extends from the motor, likely for dust extraction purposes. The surface below shows a wooden floor indicating it is designed for sanding or finishing tasks.

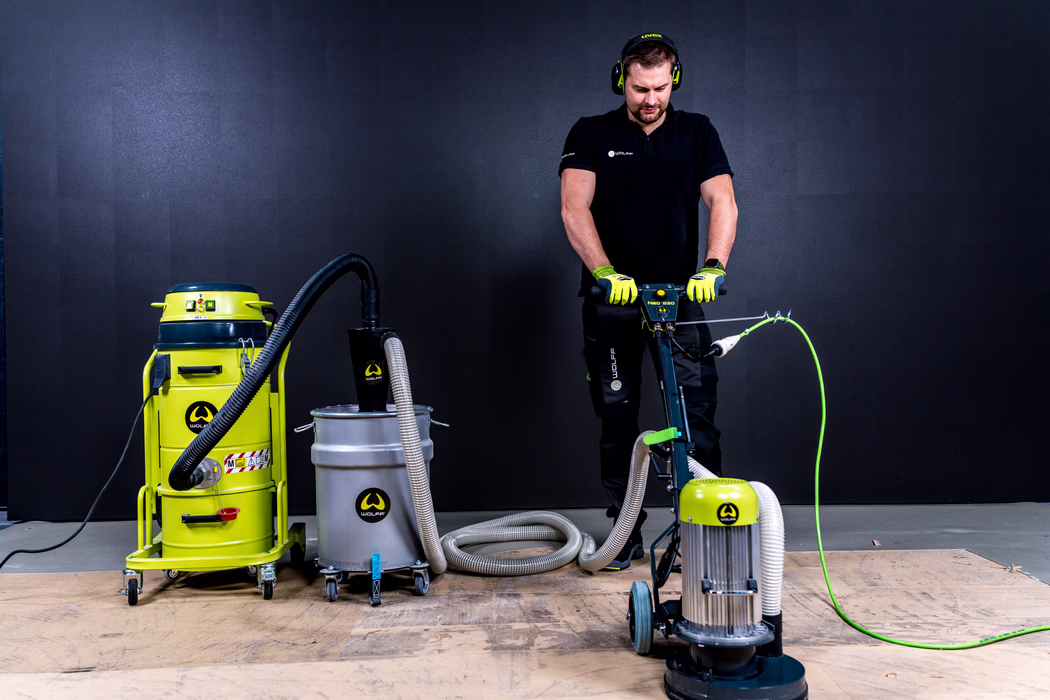

A person using a floor sanding machine in a workshop environment. The individual is wearing protective headphones and gloves while operating the machine. There are two vacuum cleaners in the background, one yellow with a hose and the other a silver container, which are likely used for dust extraction. The workspace appears to be organized with tools and equipment neatly arranged.

NEO 230

The Neo 230 floor sanding machine is ideal for processing areas of up to 150 square meters and for edge processing. This machine combines advanced technology with a robust design to meet the highest demands in professional use.

Data sheet

Properties

The Neo 230 milling and sanding machine is the ideal machine for removing old layers such as adhesives, fillers or coatings. With its versatile angle adjustment, modern segment change system and efficient dust extraction, it meets the highest standards of quality and performance. Perfect for working close to edges and convenient handling.
Integrated extraction device: The machine is equipped with a powerful extraction device that ensures a virtually dust-free working environment. This not only increases work efficiency, but also protects the user's health and reduces the amount of cleaning required.
Angular adjustment of the sanding head: The sanding head can be precisely adjusted to three different angular positions. This function enables optimum adaptation to different floor types and surface conditions to achieve a uniform sanding pattern.
Movable extraction hood: The extraction hood adapts perfectly to the floor surface. This ensures consistent dust extraction and sanding performance.
Working close to the edge: For work on edges and borders, the extraction hood can simply be pushed open, allowing sanding right up to the wall. The sanding head can also be moved to the right or left to move parallel to the wall.
Ergonomic operation: The handle of the machine is height-adjustable, allowing flexible adaptation to the user's height and working situation. This feature contributes significantly to reducing fatigue during long periods of use. The handle can also be folded down for easier transportation.
Quick segment change: Thanks to the modern slide-in system, the diamond segments can be changed in seconds without the use of tools.
Additional weight for increased grinding pressure: An additional weight that can be mounted on the machine is available as an option. This additional weight increases the grinding pressure, which leads to a significant improvement in grinding performance, especially when processing harder surfaces.

Additional info

NEO 230
Disc holder for 4 diamond segments
Cable support
Extension cable
Soft-head hammer
Hearing protection
Safety goggles
Without grinding segments!

Manual NEO 230_DE, EN, FR 2 MB
NEO 230 EN 207 KB

Voltage	230 V
Suction connection	50 mm
Working width	230 mm
RPM	1500 RPM
Frequency	50 Hz
Power	2000 W
Noise pressure level	68 dB(A)
Noise power level	79 dB(A)
Hand/arm vibration	3 m/s²
Total weight	44 kg

Article number	Article	Shipping unit
75382	NEO 230 1,5KW/115V/60HZ USA	Piece : 1
82159	NEO 230 230V UK	Piece : 1
74895	NEO 230 2KW 115V/50HZ UK	Piece : 1
81850	NEO 230 2KW 230V CH	Piece : 1
79085	NEO 230 2KW 230V DK	Piece : 1
74650	NEO 230 2KW/230V	Piece : 1
