Presso Mess
To measure the shear strength of substrates, such as screed, compounds and wooden material (Special measuring instrument for assessors and reviewers from the flooring industry)
Properties
- Shear strength is measured with a hydraulic sensor
- Shear strength can be read off the display
- Tested by the Materials Testing Institute at the University of Stuttgart (MPA Stuttgart, Otto Graf Institute (FMPA))
- Max. test load 5 kN

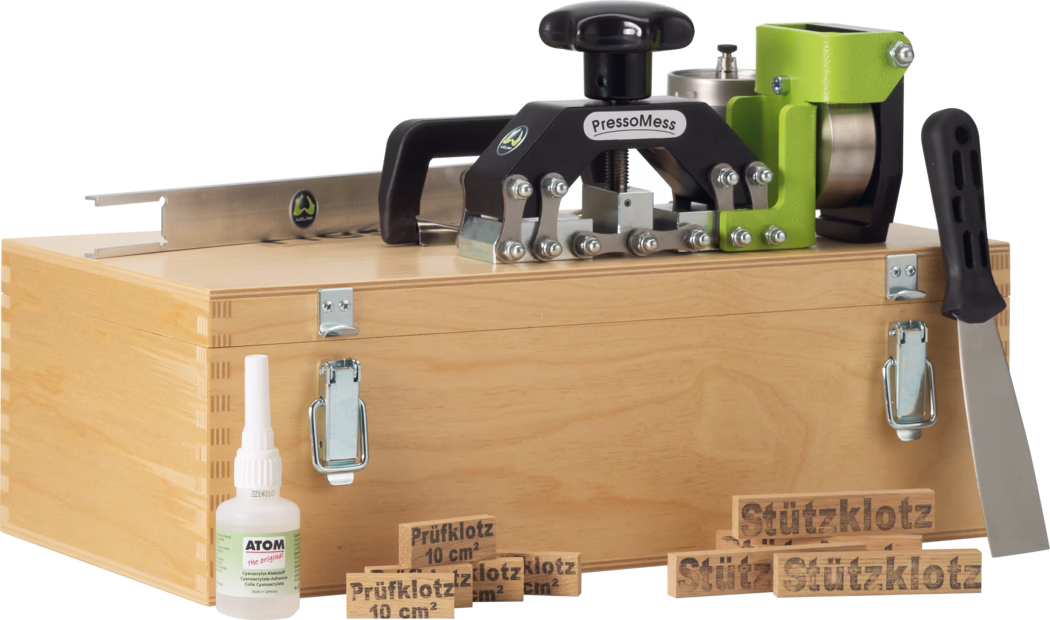

Additional info
- PressoMess
- Distance template
- Hand-held spatula
- Mixed adhesive
- 20 pairs of wooden blocks
- Carrying case
Downloads
Technical data
| Accuracy | 0,2 kN (N/mm²) |
|---|---|
| Measuring range | 0-5 kN (N/mm²) |
Ordering information
| Article | Article number | Shipping unit |
|---|---|---|
| Distance gauge | 16273 | Piece : 1 |
| Hand spatula | 16272 | Piece : 1 |
| Mixed adhesive | 13926 | Piece : 1 |
| Presso Mess | 16273 | Piece : 1 |
| Presso Mess operating instructions | 19649 | Piece : 1 |
| Presso Mess spare parts list | 79039 | Piece : 1 |
| Supporting blocks, 100 pcs. | 13922 | Piece : 1 |
| Test blocks, 100 pcs. | 13923 | Piece : 1 |
| Transport case | 19323 | Piece : 1 |
