NEO 330

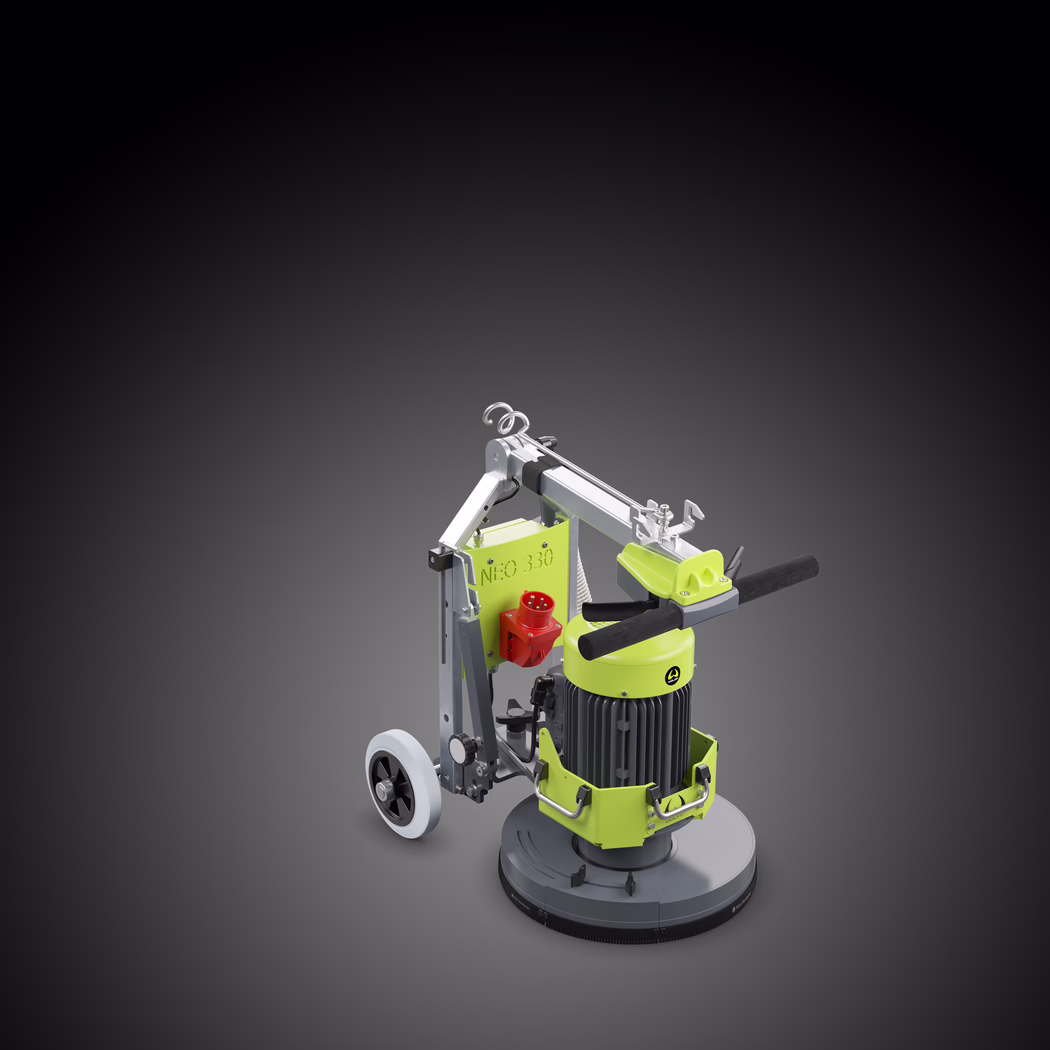

The Neo 330 floor grinding machine is the ideal solution for professional continuous use whenever efficient grinding and reliable results are required. It combines high removal performance with maximum edge processing and impresses with powerful motor performance as well as particularly easy handling during operation and transport.
Properties
The Neo 330 milling and floor grinding machine is the ideal solution for professional substrate preparation on small to medium-sized areas as well as for edge processing. With a working width of 330 mm, a 3.0 kW motor (400 V), and space for 6 diamond segments, the Neo 330 offers a powerful combination of removal performance, user comfort, and mobility.

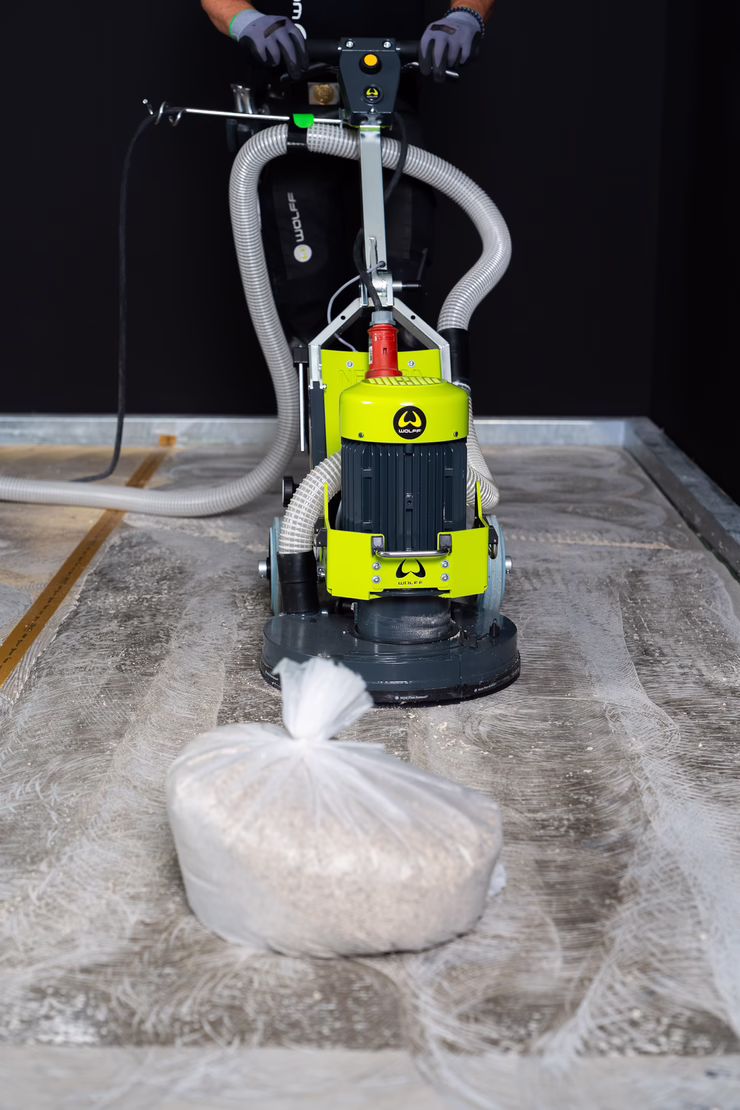

Low-dust operation thanks to integrated extraction system
The Neo 330 is equipped with an integrated extraction system with a 50 mm suction connection. In combination with an industrial vacuum cleaner, it enables almost dust-free operation, reduces dust exposure, protects the health of the operator, and lowers cleaning effort.
Adjustable grinding head angle with three positions
The grinding head can be adjusted to three angle positions. This allows the machine to be adapted to different floor types and surface conditions in order to achieve a uniform grinding pattern.

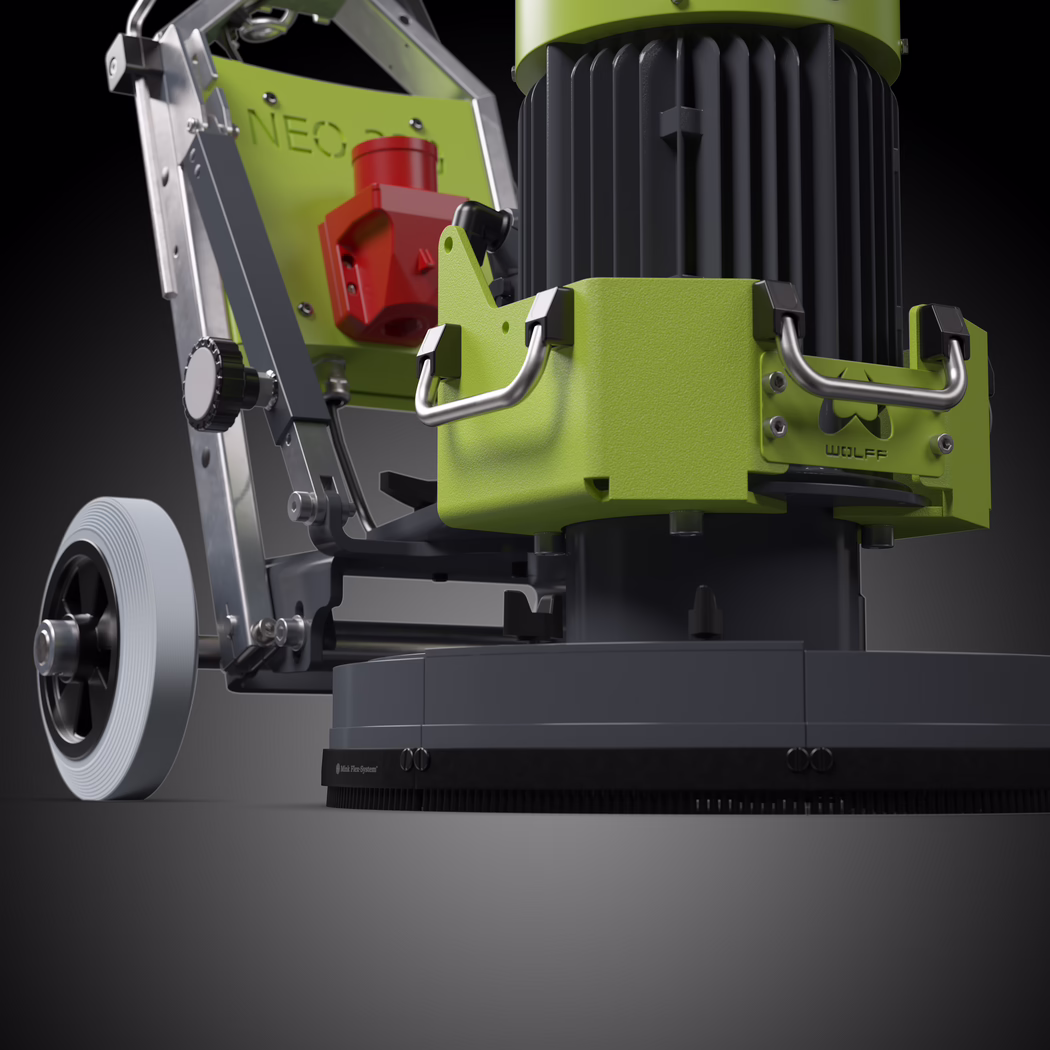

Movable dust hood for consistent grinding and extraction performance
The movable dust hood follows the floor in all grinding head positions. This ensures that dust extraction and grinding performance remain consistent, resulting in a clean, evenly treated surface.

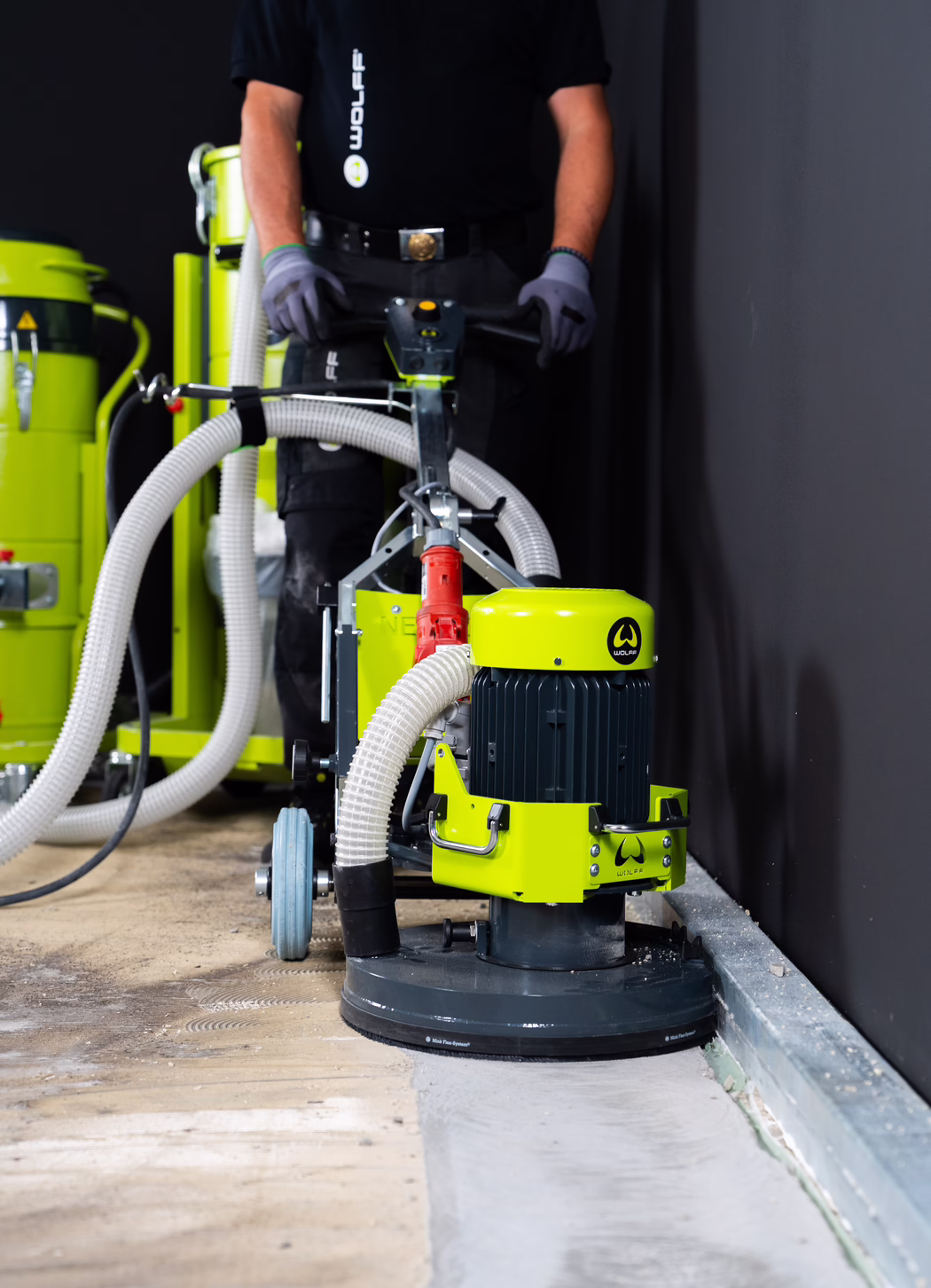

Edge-close work thanks to sliding dust hood
For edge-close grinding, the dust hood can simply be pushed upwards. This allows work directly up to walls and edges without the need for additional edge devices.

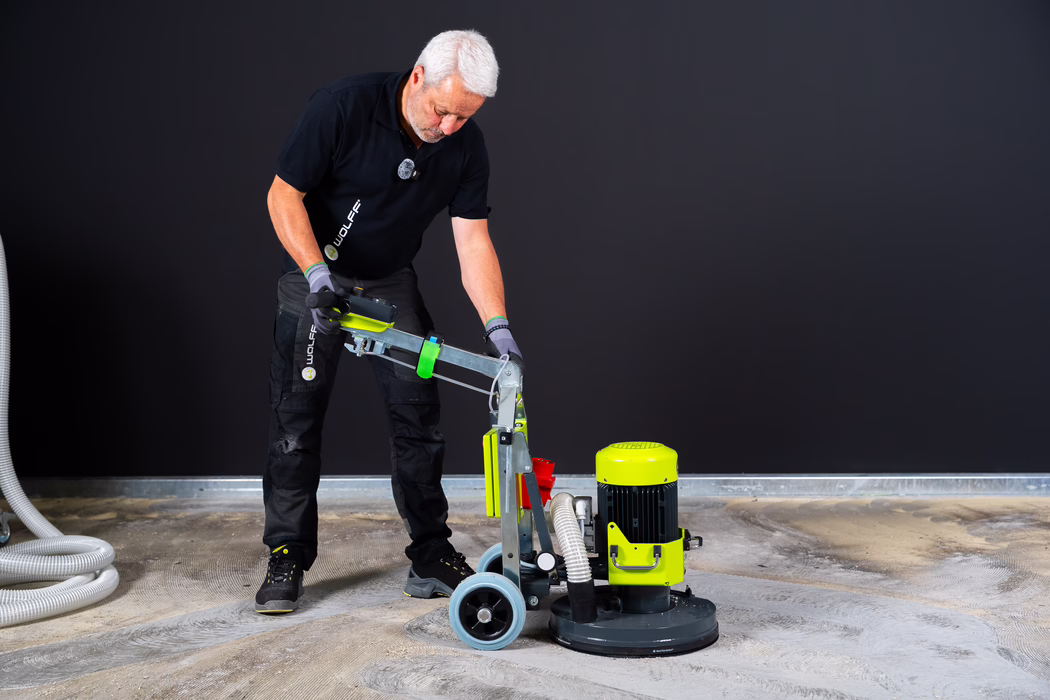

Ergonomic operation with height- and tilt-adjustable handle
The handle of the Neo 330 is adjustable in both height and tilt. This enables an ergonomic working posture, reduces fatigue during longer periods of use, and supports precise machine control.
Easy transport thanks to folding handle and modular design
For mobile use on construction sites, the Neo 330 is equipped with a folding handle and a modular (two-part) design. Despite its total weight of 72 kg, this allows the machine to be transported and loaded easily, even into smaller vehicles or over stairs.

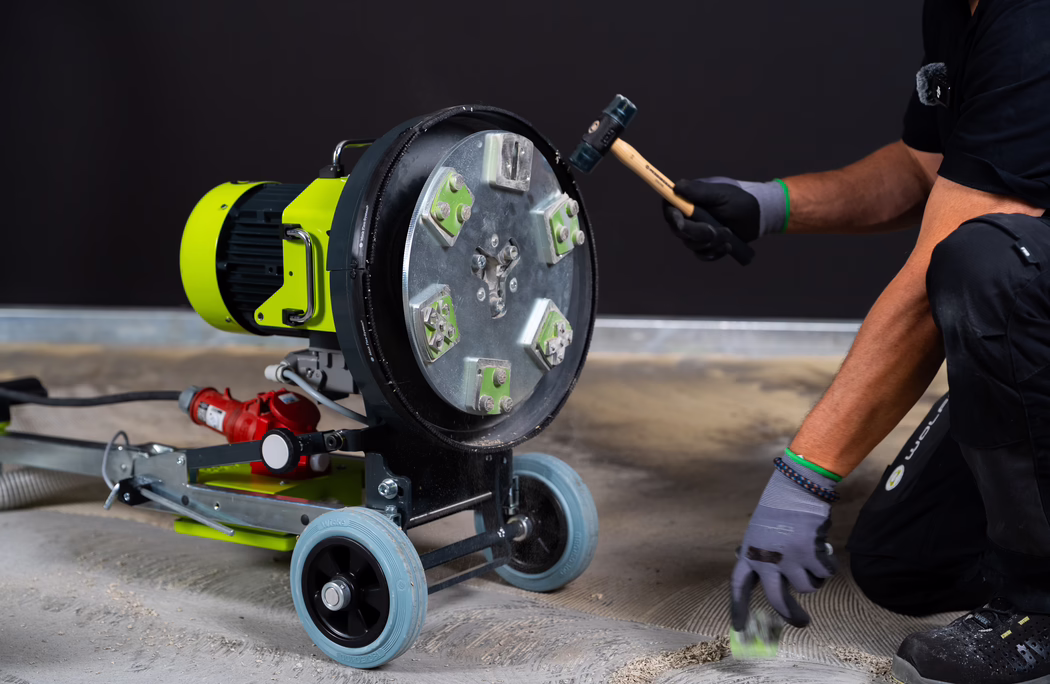

Fast segment change with modern slide-in system

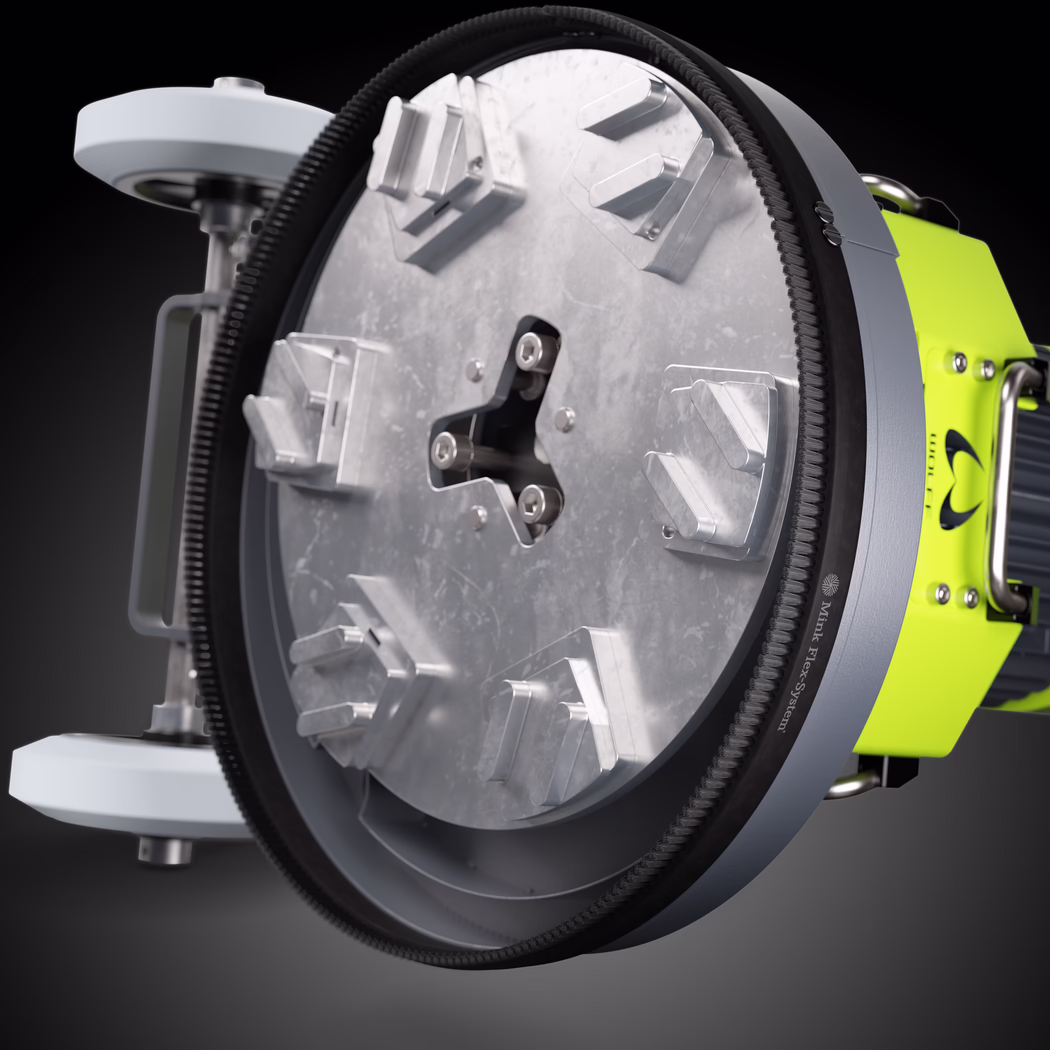

The Neo 330 features a disc mount for 6 diamond segments and a slide-in system. The segments can be changed without tools in just a few seconds – minimizing downtime and enabling rapid adaptation to different substrates.
Powerful performer in substrate preparation
As a “powerful performer for substrate preparation”, the Neo 330 combines proven WOLFF technology with high reliability in tough everyday construction site conditions – the first choice for screed layers, floor layers, and renovation contractors who require efficient grinding, milling, and edge-close work on small to medium-sized areas.
Additional info
- Floor grinding machine NEO 330
- Disc holder for 6 diamond segments
- Cable support
- Extension cable
- Soft-head hammer
- Hearing protection
- Safety goggles
- Without grinding segments
| Voltage |
400 V |
|---|---|
| Suction connection |
50 mm |
| Working width |
330 mm |
| RPM |
1500U/min |
| Frequency |
50 Hz |
| Power |
3,0 kW |
| Noise pressure level |
69dB(A) |
| Noise power level |
80dB(A) |
| Hand/arm vibration |
3m/s² |
| Total weight |
72kg |
| Article number | Article | Shipping unit |
|---|---|---|
| 183050 | NEO 330 EU |
Piece :
1
|
