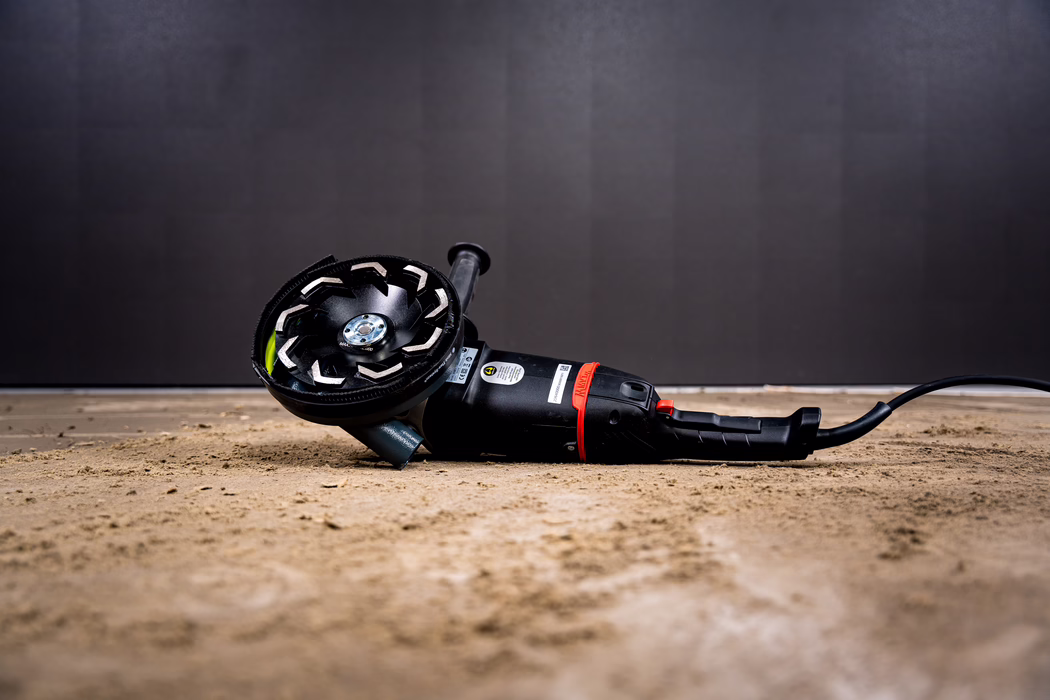

A close-up photo of a black electric angle grinder lying on a dusty concrete floor. The tool is positioned horizontally with the grinding disc facing the camera; the disc has segmented abrasive teeth and a metal center nut. The handle and power cord extend to the right; the body shows a red safety switch and a manufacturer's sticker. The background is a dark, out-of-focus wall, creating a low-key industrial atmosphere; fine dust and small debris are scattered on the floor around the tool.

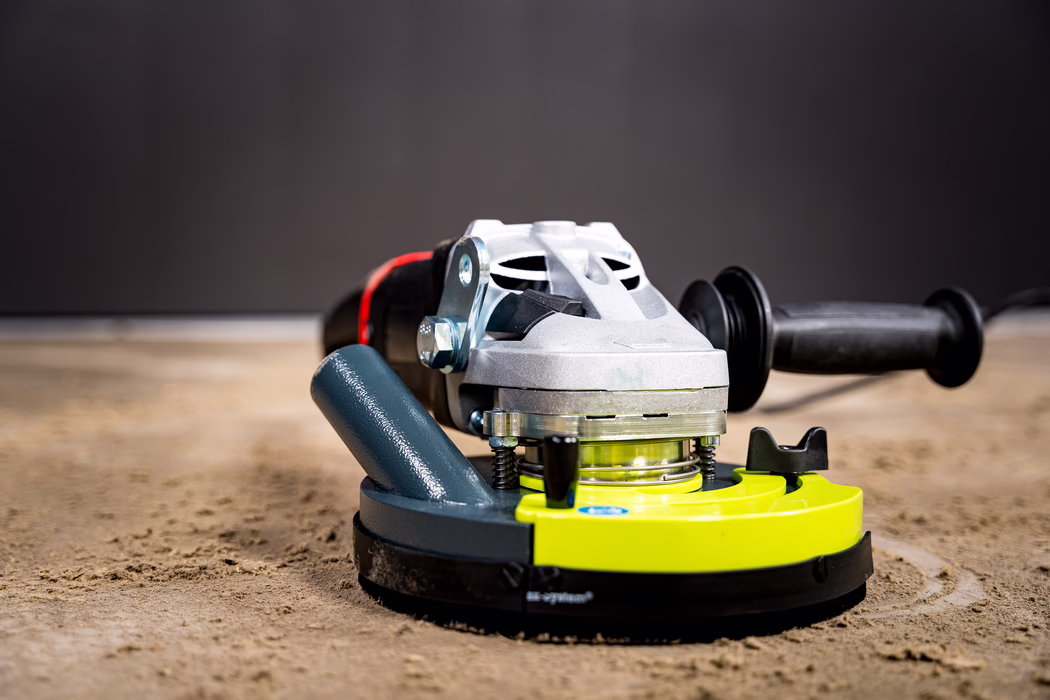

Close-up of a handheld angle grinder resting on a dusty concrete floor. The image shows the metallic motor housing with ventilation slots, a lime-green protective guard around the rotating head, a black auxiliary handle extending to the right, and a textured base covered in fine sand and dust. Shot with shallow depth of field, the background is blurred to emphasize the tool's metal details, bolts and signs of use.

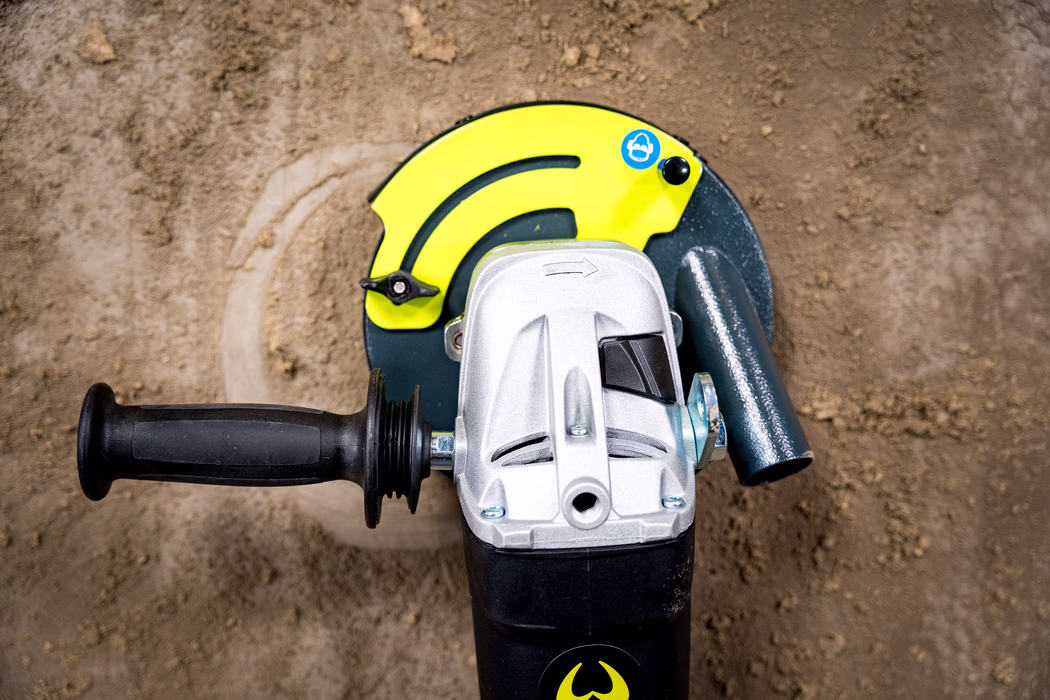

Top-down view of an angle grinder resting on a dusty concrete floor. The image shows a black rubber side handle on the left, a silver metallic gearbox housing in the center with an embossed arrow on top, a bright yellow protective blade guard covering part of the grinding disc, and a dark metal exhaust or dust port on the right. Fine dust and scratch marks on the surface indicate recent use; the tool appears ready for cutting or grinding tasks.

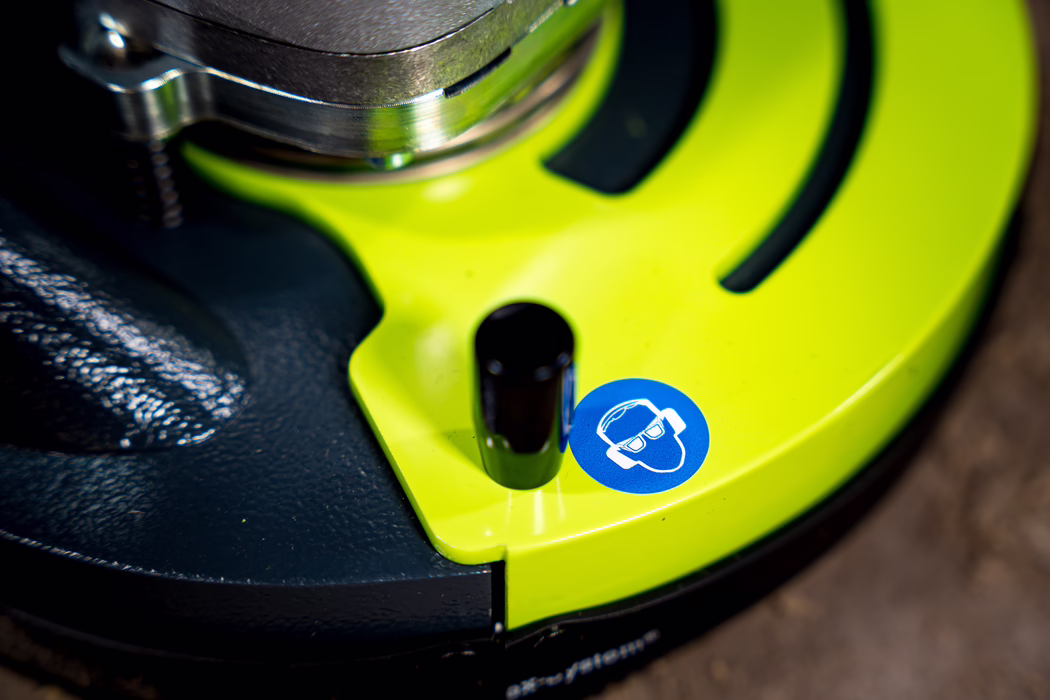

A close-up image of a bright green power tool, showing part of its control panel. A black cylindrical component is prominently visible, next to a blue sticker featuring an icon of a person wearing glasses and headphones, indicating the need for hearing protection.

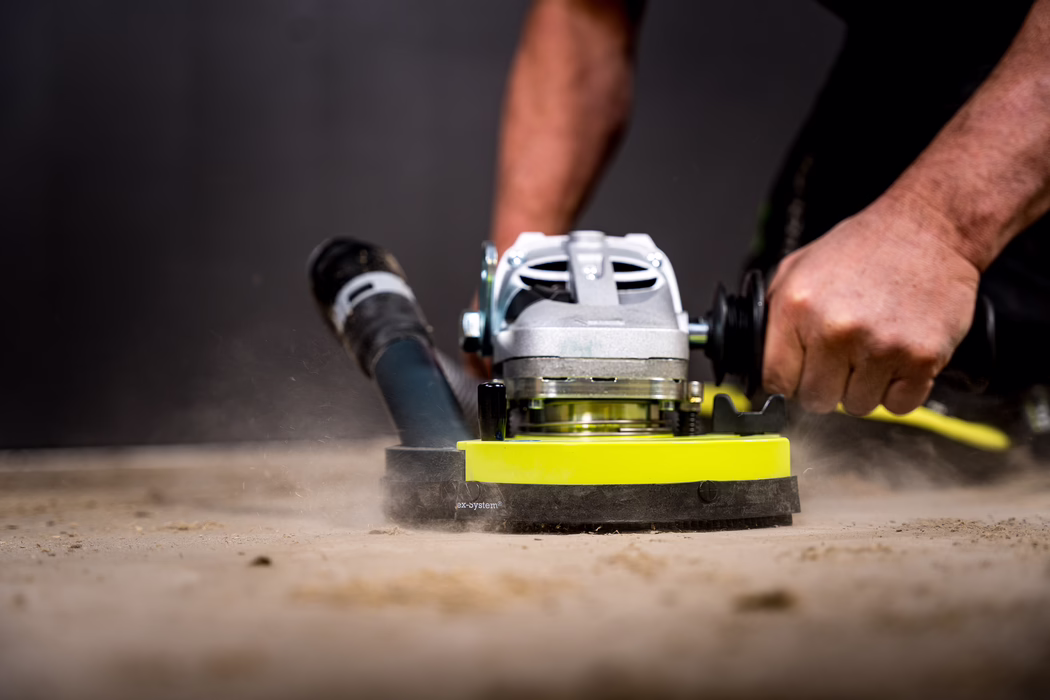

Close-up of a worker operating a handheld floor grinding machine on a concrete surface; the yellow abrasive head spins and raises dust while strong hands grip the tool's handles.

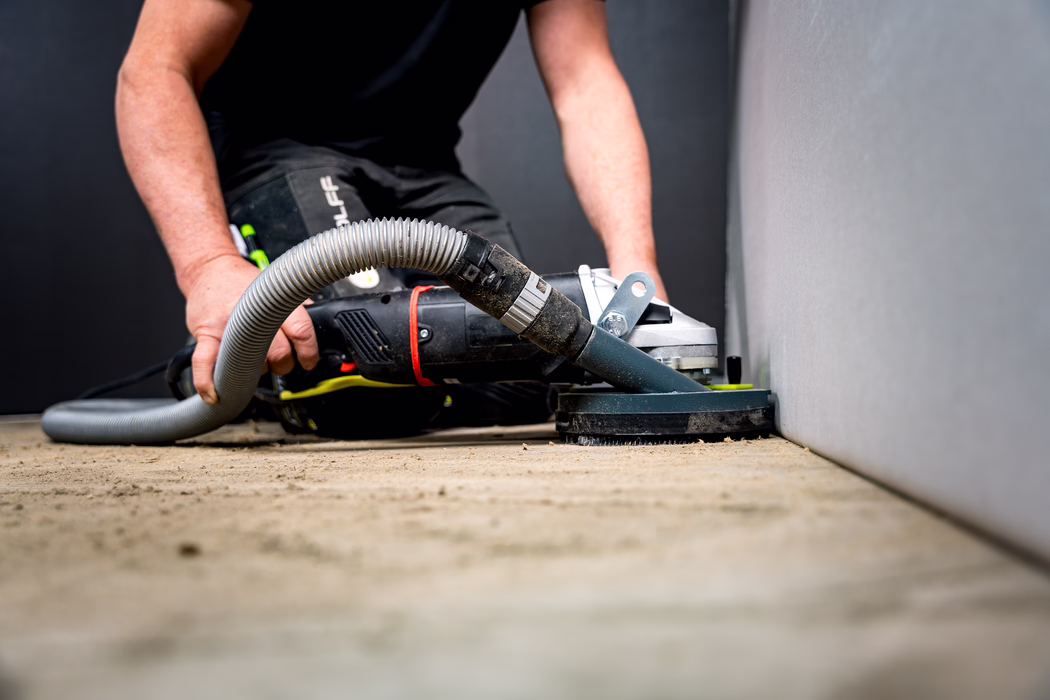

Close-up of a worker using a handheld electric floor sander along the base of an interior wall. The image shows forearms and hands gripping the sanding machine and the flexible dust-extraction hose attached to it. The sanding disc is pressed against a rough floor near the wall edge, producing fine dust. The worker wears dark work clothing and is crouched low to reach the floor; the background includes a dark wall and a smooth light-gray adjacent wall. The low-angle composition focuses on the tool and floor surface, with dust and textured floor in the foreground slightly out of focus.

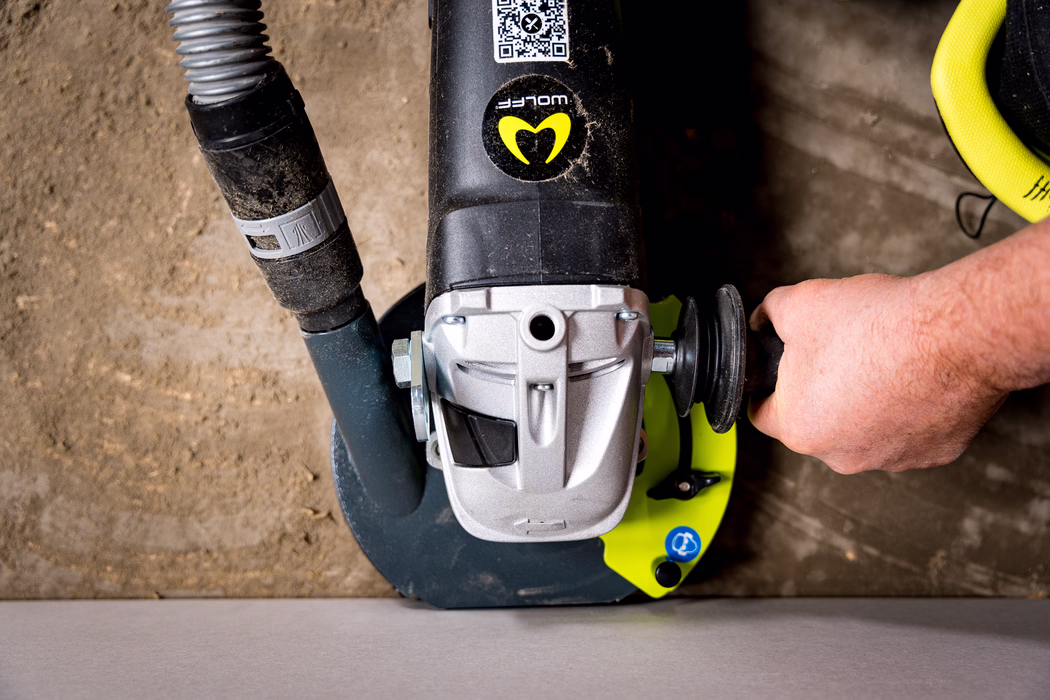

Top-down close-up of a handheld power grinder pressed against a floor surface. The metal gearbox and protective guard of the tool are visible, along with a flexible dust-extraction hose attached near the device and a worker's hand gripping the side handle on the right. Dust and dirt on the machine and surrounding floor suggest active grinding or surface-preparation work. A yellow safety plate and a round sticker with a stylized yellow heart appear on the tool's body. The composition focuses on the tool and the act of work, with a neutral brownish construction-floor background.

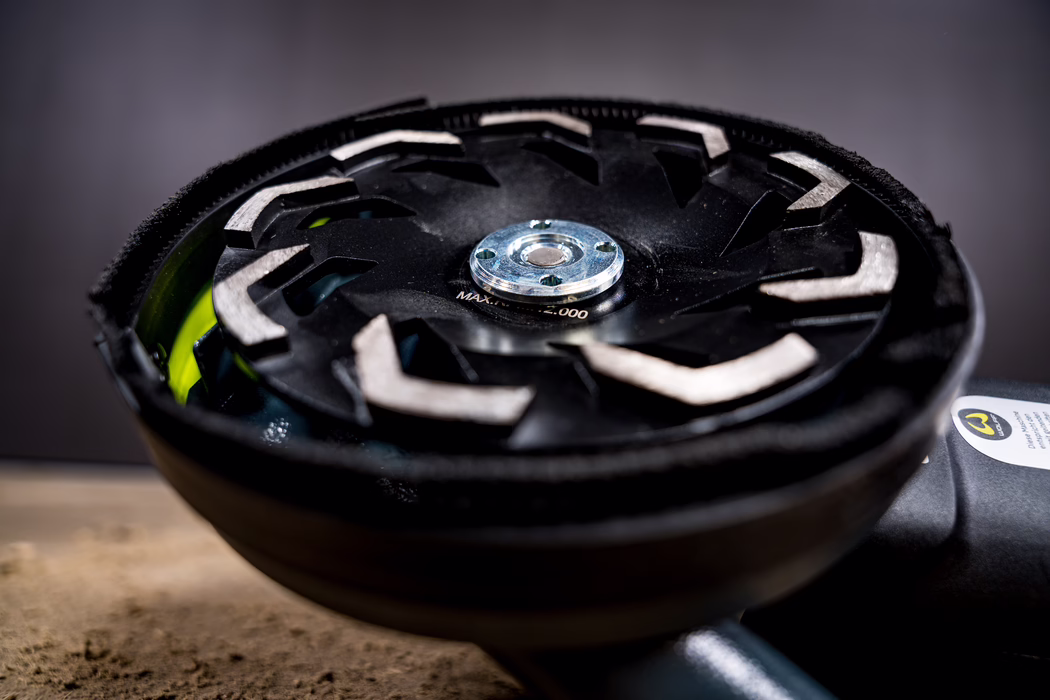

Close-up of a circular abrasive or polishing pad attached to a handheld power tool. The black circular backing plate features a central metal nut, several segmented silver abrasive inserts arranged radially, and a Velcro or foam edge. The surface shows light wear, dust and scratches. A shallow depth of field keeps the pad sharply focused while the background and workbench are softly blurred.

BS 180

Powerful Floor grinding machine for near-edge sanding of stairs, landings, rail systems and wall areas

Data sheet

Properties

The BS 180 floor grinding machine is specially designed for powerful and precise grinding close to edges, walls and other hard-to-reach areas. With its powerful output of 2200 W and a speed of 6600 rpm, this machine enables efficient and fast surface preparation.

Working right up to the wall: Thanks to the hinged and height-adjustable bonnet, the BS 180 allows you to work right up to the edge with minimal dust. It is therefore ideal for grinding close to the edge of stairs, landings, rail systems and wall areas.
Effective dust extraction: Equipped with an extraction connection for industrial vacuum cleaners from M30 and a spring-loaded cover bonnet, the BS 180 ensures high extraction performance and keeps the work area clean. The bonnet also adapts to uneven surfaces thanks to the spring-loaded suspension and brushes.
Ergonomic design: With a weight of just 9.5 kg and ergonomically designed handles, the edge sander offers a high level of working comfort and is easy to handle.
Versatile application options: Perfect for removing unevenness, adhesive residue, filler and old layers of paint. The ES K20 sanding disc is included as standard, but the BS 180 can also be used with various diamond sanding discs.

Additional info

BS 180
Grinding wheel ES K20 black Ø180 mm
Tool kit
Transport Case
Ear protection
Safety goggles

Manual BS 180_DE, EN, FR 1 MB

Voltage	230 V
Suction connection	Ø 35/38 mm
Working width	180 mm
RPM	6600 RPM
Weight	9.5 kg
Noise pressure level	94 dB(A)
Noise power level	105 dB(A)
Hand/arm vibration	5 m/s²
